Transposable elements in the mammalian germline: a comfortable niche or a deadly trap? (original) (raw)

Introduction

Genes have a relatively small contribution to the mass of mammalian genomes, compared with the overwhelming representation of clustered and interspersed repetitive sequences, in particular transposable elements (TEs) (Lander et al., 2001; Waterston et al., 2002). TEs are mobile DNA segments that recruit the cellular machinery for their replication, as well as encode their own specialized proteins to support their nomadic lifestyle. Mammalian genomes host almost three million of these jumping sequences, which have accumulated over evolutionary time and can act as a vehicle for genome size expansion. Although TEs account for <3% of the compact genome of the pufferfish (Fugu), they take over almost half of the genome mass in mice and humans. In addition, contrary to plants and Drosophila in which TEs have accumulated in heterochromatin blocks, TEs have mostly colonized euchromatic compartments in mammalian chromosomes, in which they are scattered around and within genes (Goodier and Kazazian, 2008). To tolerate such a level of invasion and the dangerous promiscuity with host genes, genomes have developed a variety of restraining strategies that tame the aggressive nature of TEs. The heterogeneity of TEs has forced the development of flexible and adaptable systems, which maintain genomic integrity but also certainly promoted the evolution of gene regulation.

TEs are indeed vastly diverse in sequence, but can be categorized into two well-defined classes, according to their structure and movement strategies. Class II elements are made up of DNA transposons, which are mobilized by a ‘cut and paste’ mechanism. These account for roughly 3% of the human genome and are mostly inert fossils of ancient elements (Lander et al., 2001). Class I elements are retroelements, which account for approximately half of the genome in mammals. A majority of retrotransposons are truncated and mutated, but some active representatives have retained the ability to duplicate themselves, in a ‘copy and paste’ process involving an RNA intermediate (Craig et al., 2002; Goodier and Kazazian, 2008).

Several families of retrotransposons co-exist in the same genome. Their relative number and level of activity reflects varying evolutionary success in invading and surviving in their host. Competition for vital host factors may also have contributed to the dominance of specific elements (Furano et al., 2004). Retrotransposons can be classified into two types, depending on whether or not they possess long terminal repeats (LTR). LTR-retrotransposons, also known as endogenous retroviruses (ERVs), are potential relics of infectious retroviruses that became bona fide endogenous genomic sequences after invading the host germline. In this respect, an ongoing phenomenon of retrovirus endogenization is currently observed in the koala genome (Tarlinton et al., 2006). LTR-retrotransposons produce Gag and Pol proteins that enable them to reverse transcribe a copy of their RNA in the cytoplasm before integration into a new genomic location. However, without a functional envelope gene, they are defective for horizontal (cell to cell) transmission. LTR-retrotransposons make up approximately 8–10% of the human and mouse genomes (Lander et al., 2001). Although human ERVs do not show signs of recent activity (Moyes et al., 2007), mouse ERVs are still causing de novo deleterious mutations and provide a significant source of strain-specific insertional polymorphisms (Zhang et al., 2008). In spite of the scarcity of elements with full coding potential, the retroviral-like intracisternal A particle (IAP) and the MusD/Early Transposon (ETn) families are still responsible for approximately 10% of spontaneous mutations in inbred mice (Maksakova et al., 2006, 2008). Using ex vivo assays, a few transposition-competent elements have been shown to efficiently mobilize the impotent members of their own family in trans, providing an alternative strategy for de novo insertions (Ribet et al., 2004).

Non-LTR elements are the predominant retrotransposons in mammals, and consist of two sub-types, the LINEs (long interspersed nucleotide elements) and the SINEs (short interspersed nucleotide elements). SINEs do not have any coding potential, but LINEs have self-propagating properties rendering them autonomous. Their 5′ UTR region functions as an RNA polymerase II promoter, and they encode two proteins that are necessary and sufficient for their activity, the RNA-chaperone ORF1 and the endonuclease/reverse transcriptase ORF2 protein. LINE retrotransposition relies on a well-described mechanism of ‘target-site primed reverse transcription’: the RNA is first exported to the cytoplasm to allow the production of LINE proteins, and then retranslocated into the nucleus where it undergoes complementary DNA conversion directly at the site of integration (Ostertag and Kazazian, 2001). The LINE-1 (L1) subclass represents some 17–20% of the total human and mouse genomes, consisting of more than 500 000 copies among which 80–100 elements are still capable of retrotransposition in humans (Brouha et al., 2003). In contrast, several thousand L1 elements are still active in mice. L1 elements are considered as the master retrotransposons of mammalian genomes, not only by their overwhelming success in expansion during evolution, but also by their ability to mobilize in trans retrotransposons of the SINE class (Ostertag and Kazazian, 2001; Goodier and Kazazian, 2008). Mammalian SINEs have expanded to one million copies. The most prominent members are Alu repeats in humans and their B1 counterparts in mice, and both are derived from 7SL RNA, a functional component of the signal recognition particle.

In this study, we will review the effect that ancient and modern TEs have on genome evolution and function, and we will examine the nature of the interactions that exist between host genomes and their ‘colonists’, notably the cellular mechanisms that limit the mobilization and the life cycle of TEs. The germline represents a particularly relevant developmental context in which to study TE biology: TE propagation within a population strictly relies on a vertical mode of inheritance and therefore requires some activity in gamete precursors. A relaxation of epigenetic repression coincides with the acquisition of pluripotency of the early developing germline, which can be observed as an opportunity for TEs to constitute a massive force and invade the host genome. However, this apparent loss of control may rather be an insidious trick played by the germline to spot exuberant and loud TEs and force them to repression.

Good TEs, bad TEs

TEs can modify the landscape and the expression of the genome in a startling number of ways (Goodier and Kazazian, 2008). They can disrupt genes by direct insertional mutagenesis while hopping to a new genomic location. Homologous recombination between non-allelic repeats can cause deletions, duplications and other chromosomal rearrangements. New chimeric mRNA and proteins can be generated by exon shuffling, and by integration of 5′ or 3′ flanking sequences within the TE transcript. Mobilization of cellular mRNAs by the retrotransposon machinery can also generate new genes, known as processed pseudogenes, which may evolve new functions, divergent from the gene from which they originate. These various effects have participated in evolution and speciation. It has been reported that some 8 Mb of primate sequence has been lost in the human lineage merely as the result of target site deletions induced by TE insertions (Xing et al., 2007). Similarly, bursts of pseudogene amplification often coincide with peaks of TE activity during evolution (Ohshima et al., 2003). Beside these structural effects, TEs can also influence the expression pattern of nearby genes. TEs can provide strong constitutive promoters, alternative polyadenylation signals or splicing sites that can modify the cellular transcriptome. Repressive epigenetic marks associated with TEs can spread onto adjacent domains. Accordingly, LINEs have been linked to the acquisition of heterochromatic states, acting as boosting platforms for the spreading of inactivation on one of the X chromosomes in female mammals (Lyon, 2006), or attracting key epigenetic determinants for the emergence of neocentromeres (Chueh et al., 2009).

TE presence and activity can have neutral, deleterious or beneficial outcomes for the host. On a long-term basis and on purifying selection, host genomes have managed to exploit some of their TEs, which are indeed ideally suited to provide raw material for the evolution of new proteins and regulatory sequences (Volff, 2006). TE-encoded proteins have innate roles in nucleic acid biology (binding, copying, breaking, joining, degrading, and so on) and in protein processing and interactions, which can be captured by the host to fulfill useful functions. An example of ‘molecular domestication’ of a TE-encoded sequence is provided by the RAG1 protein, which has likely emerged from a DNA transposase and is involved in immunity through V(D)J joining (Agrawal et al., 1998). The centromeric protein CENPB is also similar to a transposase, originating from the Pogo superfamily (Smit and Riggs, 1996). Strikingly, a number of placenta-specific genes have appeared in the course of mammalian evolution through the recruitment of existing TE sequences, illustrating their central role in speciation. The placenta-essential Rtl1 and Peg10 genes evolved in mice from TE sequences of the Sushi-ichi class that are still present in the Fugu genome but are no longer active in mammals (Ono et al., 2006). Coincidently, syncytin genes have occurred independently in different mammalian lineages from ERVs, and have an essential role in placenta development and function (Heidmann et al., 2009). Finally, the widespread location and diversity of TEs can also be adopted by mammalian genomes for constituting a repertoire of regulatory sequences, such as binding sites for transcription factors. It is noteworthy that binding sites for the chromatin insulator CTCF are overrepresented in B2 SINE repeats, while motifs for the pluripotency factor Sox2 are found in ERV-Ks in mouse (Wei et al., 2006; Bourque et al., 2008). The weak conservation of transcription factor-binding sites and regulatory networks in mammalian genomes would actually fit with the fact that TE sequence and distribution are highly diverse among species. As a global illustration of the effect of TEs on genic composition and regulation, it was estimated that TE-derived sequences are found in the coding region of 4% of human genes, and are contained in 25% of human promoters (Nekrutenko et al., 2003; van de Lagemaat et al., 2003). TE activity can also indirectly generate beneficial novelties, by hijacking cellular mRNAs and catalyzing the insertion of their complementary DNA in new genomic environments. As an example, an advantageous fusion protein created through L1-induced mobilization of the cyclophilin A gene into the TRIM5 gene explains the resistance of the owl monkey to human immunodeficiency virus-1 infection (Sayah et al., 2004).

Although TE presence and activity can have a useful outcome for the host and provide opportunities for genetic innovation, diversification and speciation during mammalian evolution, it is evident that on a short-term basis, TEs impose a constant threat to the integrity of the genome. This is apparent by the 65 known human diseases solely caused by TE de novo insertions, in which Alu and L1 elements have a major role (Ostertag and Kazazian, 2001; Cordaux and Batzer, 2009). Alu repeats are also frequently involved in major chromosome rearrangements through ectopic recombination between dispersed elements, which have generated almost 50 known diseases. When occurring in the germline, these events can be transmitted to the next generation and lead to hereditary disorders. Since the first report of a case of hemophilia A resulting from an L1 insertion into the blood clotting factor VIII gene, the list of TE-induced congenital pathologies is constantly growing. In the context of somatic cells, cancer can develop, and cases of colorectal cancer have been linked to L1 insertion disrupting the tumor-suppressor gene adenomatous polyposis coli (Miki et al., 1992). A variety of mutant phenotypes caused by TE-induced insertions and rearrangements have also been documented in mouse, and include tumors, infertility and developmental pathologies (Bannert and Kurth, 2004). Independently of their activity, TE toxicity can occur in a retrotransposition-independent manner; overexpression of the L1 ORF2 protein single-handedly induces double-strand breaks and promotes apoptotic and senescence-like responses in cellular assays (Wallace et al., 2008). Finally, relaxation of TE silencing is a typical hallmark of cancerous and aging cells, in which it usually underlies a loss of genome-wide DNA methylation (Barbot et al., 2002; Schulz et al., 2006; Howard et al., 2008). TE hypomethylation and expression may facilitate genetic instability, DNA breaks and chromosome translocations. Whether TE reanimation hastens tumorigenesis and aging processes, or on the contrary triggers cellular responses such as apoptosis, is still under investigation.

Host responses to TEs or how to live with a herd of squatters

To limit the deleterious effects of TEs, mammalian cells have developed a multi-layered response that can affect the various stages of TE life cycle (Table 1). As TEs are greatly diverse in sequence, restricting pathways are quite universal and flexible and can be used for other cellular functions, usually related to general control of gene expression. Active TEs have an RNA-centered mode of replication and accordingly, a majority of defense mechanisms resemble innate immune pathways used for infectious retrovirus restriction. Currently known host responses target (a) TE transcription, (b) post-transcriptional processing of TE RNAs and (c) integration of new TE copies. As a result of these multiple hits, increased transcription and even production of TE accessory proteins may not necessarily convert into higher insertion rate. Although not being directly considered as a host defense strategy, it is also important to mention that cell division could be a strict requirement for TE activity. In vitro reporter assays notably showed that arrests at any stage of the cell cycle or senescent states strongly inhibit L1 retrotransposition (Kubo et al., 2006; Shi et al., 2007).

Table 1 Known host repressors of TE activity in the mouse and human genomes

Full size table

Transcriptional control: the role of epigenetic modifications

Transcriptional competence results from a combinatorial integration of _cis-_regulatory sequences, _trans-_acting factors and epigenetic layouts. To ensure the inheritance of newly retrotransposed elements, TEs have to be expressed in germ cells and their embryonic precursors. As discussed later, regulatory sequences associated with TE 5′LTR or 5′UTR promoters seem to be particularly suited for transcriptional machineries present in early embryos and the germline. However, the sole presence of these factors is not sufficient for TE expression, whose promoters are normally locked by DNA methylation and repressive chromatin states that render them inaccessible for transcription.

In mammals, DNA methylation has a key role in transcriptional silencing and has been suggested to have evolved for the specific purpose of defending the host genome against TE activity (Yoder et al., 1997). Mammalian DNA methylation targets cytosines involved almost exclusively in CpG dinucleotides, and methylated cytosines are in majority contained in TEs. DNA methylation not only causes immediate transcriptional repression of TEs by inducing a local repressive chromatin state, but can also promote permanent inactivation by C → T deamination naturally endured by methylated cytosines. Reflective of their heavily methylated status in the germline, accumulation of TG or TA conversions has eventually led to the immobilization of old TEs (Rollins et al., 2006).

Mutations in genes encoding proteins of the DNA methylation machinery or those facilitating methylation invariably result in TE reanimation and dramatically reduce viability or fertility. Mouse embryos lacking the maintenance DNA-methyltransferase Dnmt1 lose methylation of various types of TEs, massively reactivate IAP elements and die before mid-gestation around 8.5 d.p.c. (days post-coitum) (Walsh et al., 1998; Maksakova et al., 2008). Combined inactivation of de novo DNA-methyltransferases Dnmt3A and Dnmt3B, which co-operate in the establishment of methylation patterns in early embryos, phenotypically mimics the Dnmt1 knockout phenotype (Okano et al., 1999). In the male germline, Dnmt3A strictly requires its co-factor Dnmt3L to methylate L1 and IAP repeats. Failure to achieve this process leads to a high level of expression of these elements in germ cells and complete sterility of Dnmt3L or Dnmt3A mutant males (Bourc’his and Bestor, 2004; Kato et al., 2007). Although catalytically inactive, biochemical assays have revealed that Dnmt3L facilitates de novo methylation by stabilizing the active conformation of Dnmt3A, this therefore allows a more efficient transfer of methyl groups onto target sequences (Chedin et al., 2002; Jia et al., 2007). It should be noted that Dnmt3L is not only functionally but also evolutionarily linked to the protection of the germline against TEs: Dnmt3L specifically emerged in eutherian mammals, some 150 million years ago, coinciding with an important TE expansion in mammalian genomes (Yokomine et al., 2006; Warren et al., 2008).

In addition to members of the DNA-methyltransferase family, proteins that assist the DNA methylation reaction also have a role in TE transcriptional repression. Among them, Lsh (lymphoid-specific helicase) is a member of the SNF2 family of chromatin remodeling ATPases that facilitates the access of Dnmts to the DNA substrate (Zhu et al., 2006). Inactivation of Lsh in mice results in decreased methylation and increased expression of IAP elements in female germ cells and in embryonic tissues, which leads to early post-natal lethality (Huang et al., 2004; De La Fuente et al., 2006). To ensure the clonal propagation of methylation patterns upon cellular divisions, the maintenance DNA-methyltransferase Dnmt1 requires UHRF1 to load onto hemi-methylated DNA strands generated by replication (Sharif et al., 2007). Uhrf1 mutant mouse embryos phenocopy the Dnmt1 mutation, showing hypomethylation at various TEs and reactivation of IAP elements.

DNA methylation and chromatin remodeling concur in the formation of condensed heterochromatic states, and specific repressive histone tail modifications have been associated with TE promoters. Alu repeats are enriched in H3K9 methylation in human somatic cells (Kondo and Issa, 2003), and IAP elements are targeted by both H3K9 and H4K20 trimethylation in mouse ES cells (Martens et al., 2005; Mikkelsen et al., 2007). As a result of the diversity and redundancy of histone-modifying enzymes, the importance of these marks is difficult to assess functionally. Decreases in H3K9 methylation levels through inactivation of H3K9 methyltransferases have variable outcomes on TE silencing in mouse ES cells: inactivation of ESET leads to a robust reactivation of a range of LTR-retrotransposons (Matsui et al., 2010), Suv39h deficiency induces a modest IAP reactivation (Martens et al., 2005), while inactivation of G9a has no effect (Dong et al., 2008). Reduction in H4K20 methylation through Suv420h1 and Suv420h2 deficiency does not affect TE expression in ES cells (Matsui et al., 2010). Combined loss of H3K9 and H4K20 trimethylation can induce the reactivation of L1 elements, as was observed in mouse fibroblasts lacking the heterochromatin-associated retinoblastoma protein (Montoya-Durango et al., 2009). Finally, the repressive mark H3K27 trimethylation probably has a role in silencing TEs, as combined inactivation of the polycomb complexes PRC1 and PRC2 leads to an upregulation of LTR-sequences in ES cells (Leeb et al., 2010).

Post-transcriptional silencing: playing with the RNA

Altering the genetic information through RNA editing

The term RNA editing refers to molecular processes that modify the information content of an RNA molecule. RNA-editing enzymes can target a variety of nucleosides in RNA transcripts, most often by deamination. By altering cellular RNAs and therefore the amino-acid sequence of encoded proteins, RNA editing has a large role in expanding the genome capacity, as in the case of immunoglobulin class switching. RNA-editing proteins can also act against invading RNA particles, and in mammals, these proteins are involved in innate immune responses against infectious RNA viruses. Accordingly, mutant mouse models often show immunity issues and increased susceptibility to viral infection (Muramatsu et al., 2000). RNA editases are also potent inhibitors of endogenous TE activity when overexpressed in cellular assays, but presently, very little is known about this role during development in vivo.

The ADAR family of RNA-editing enzymes converts adenosine residues into inosines in regions of double-stranded RNAs. Analysis of the human transcriptome has revealed that ADARs target double-stranded RNAs that are formed from inverted Alu and L1 repeats. In mouse, SINEs are undergoing the same conversion (Kim et al., 2004; Eisenberg et al., 2005; Nishikura, 2006). The APOBEC proteins form another family that catalyzes the deamination of cytosine residues into uracils and have greatly expanded in the primate lineage. APOBEC3G notably reduces the replication of human immunodeficiency virus, by inducing the accumulation of uracil mutations on the nascent retroviral complementary DNA strand and subsequently inactivating the newly integrated copy (Bishop et al., 2004). Retrotransposition assays have shown that APOBEC3A, 3B, 3C and 3F enzymes are potent restrictors of different classes of LTR- and non-LTR retrotransposons, such as L1, IAP, Alu, human ERV-K and MusD elements in human and mouse cells (Bogerd et al., 2006; Esnault et al., 2006, 2008). AID, another cytosine deaminase with a wider phylogenetic distribution, also represses L1 and MusD retrotransposition in mouse cells (MacDuff et al., 2009). Unexpectedly, TE restriction triggered by AID and some of the APOBEC3 proteins does not involve C to U hypermutation. It has been hypothesized that these enzymes mediate cytoplasmic sequestration of L1 RNA and/or L1-encoded proteins, or directly inhibit L1 ORFs (Stenglein and Harris, 2006; Beauregard et al., 2008). Considering the master role of L1 in retrotransposition biology, this would not only affect L1 activity but could also render the L1 machinery inaccessible to non-autonomous TEs of other classes. Alternatively, AID-like enzymes may also regulate TE activity at the nuclear level (Popp et al., 2010).

Degrading TE transcripts through RNA interference

RNA interference represents another post-transcriptional mechanism of TE suppression (Obbard et al., 2009). In this case, small RNAs operate through homology-based recognition to induce the degradation of complementary TE transcripts, through the recruitment of the RNA-induced silencing complex. The catalytic component of RNA-induced silencing complex is made up of Argonaute proteins that can bind single-stranded nucleic acids and slice them through their RNaseH-like activity. One class of TE-associated small RNAs are the small interfering RNAs (siRNAs), which are 21–23 nt long double-stranded RNAs produced by the DICER-dependent cleavage of hybrid molecules naturally formed by sense and antisense retrotranscripts. The siRNA pathway is a potent mechanism of transposon silencing in Plants, fungi and Drosophila (Brodersen and Voinnet, 2006). In human cell lines, transfected exogenous siRNAs can limit L1 expression (Soifer et al., 2005). But while TE-associated endogenous siRNAs have been reported in mammals, their formal involvement in host defense against TE invasion is still lacking. Their presence might be incidental, reflecting by-products of DICER activity, which is strictly required for the biogenesis of other small RNA effectors, the microRNAs. Accordingly, Dicer knock-out greatly impairs microRNA-directed gene silencing in oocytes, but does not lead to TE upregulation (Hayashi et al., 2008). Nevertheless, the oocyte actively produces siRNAs containing L1, IAP and Mouse Transcripts (MT) sequences (Tam et al., 2008; Watanabe et al., 2008). Interestingly, these siRNAs seem to be mostly required for degrading cellular genes bearing TE repeats in their 3′ UTR regions but not necessarily TEs themselves (Murchison et al., 2007). This suggests that the female germline may use the siRNA pathway to regulate the expression level of a particular class of genes through their TE-related sequences. Abundant LTR transcripts are also specific to early embryos and ES cells, and are found in both sense and antisense orientation (Peaston et al., 2004; Svoboda et al., 2004). These may potentially form double-stranded substrates for DICER and trigger an RNA interference response.

Another class of small RNAs has recently been linked to RNA interference-based TE repression. The piRNAs (PIWI-interacting RNAs) are single-stranded RNAs that are processed independently of DICER and are slightly longer than siRNAs (24–30 nt). They are loaded onto specific members of the Argonaute proteins, the PIWI proteins. PIWI proteins are strictly restricted to the germline and have a wider phylogenetic distribution than conventional Argonautes (Grimson et al., 2008). As for the siRNA/Argonaute complex, the piRNA/PIWI interaction forms a recognition and processing machinery for degrading target transcripts. The mouse genome encodes three PIWI proteins (four in humans) and among them, MILI and MIWI2 are involved in host defense. Mili or Miwi2 mouse mutant males are deficient in TE-associated piRNAs and consequently fail to degrade L1 and IAP transcripts that accumulate in their germ cells, thus leading to sterility (Carmell et al., 2007; Aravin et al., 2007b). The striking similarity with the Dnmt3L mutant phenotype, including a failure to properly methylate TE sequences, indicates that the piRNA pathway not only acts as a post-transcriptional suppressor but also controls the transcriptional output of TE elements (Aravin et al., 2008; Kuramochi-Miyagawa et al., 2008). This dual role is reminiscent of RNA-directed DNA methylation originally described in plants (Brodersen and Voinnet, 2006). A number of recent studies have greatly expanded our understanding of the interplay between homology-dependent piRNA and DNA methylation pathways in the mammalian germline and have provided a scenario of events that we will discuss later.

Blocking the integration

Finally, the last stage of the TE life cycle, the integration of the complementary DNA copy into the genome, is also subject to host defense. The ERCC1/XPF heterodimer complex has endonuclease activity and is involved in DNA repair mostly through the nucleotide excision repair pathway. Reduction of XPF in human cell lines increases L1 retrotransposition, suggesting that intermediates of the target-site primed reverse transcription process may be cleaved by this enzyme (Gasior et al., 2008). Interestingly, other DNA repair enzymes have an inverse effect on retrotransposition: the double-strand break repair protein ATM is indeed facilitating L1 integration (Gasior et al., 2006), indicating that various DNA repair pathways may be able to recognize and process TE integration intermediates, in a positive or negative manner.

Learning from infectious retroviruses

The recent characterization of TRIpartite Motif (TRIM) proteins as important mediators of innate immunity against retroviruses has opened up a new field of potential suppressors of endogenous retrotransposons. TRIM proteins can form high molecular-mass complexes that localize to specific subcellular compartments present in the cytoplasm and the nucleus and can target retroviruses at different stages of their cycle (Ozato et al., 2008). TRIM proteins have greatly expanded in the mammalian lineage and have evolved species-specific functions particularly well adapted to defend the host against both exogenous and intragenomic parasites. TRIM28/KAP1 (KRAB-associated protein1) is a transcriptional repressor responsible for the intrinsic resistance of ES cells to infectious retroviruses, in particular against Moloney murine leukemia virus. The zinc-finger protein ZFP809 bridges TRIM28 to a specific sequence used by the integrated proviral DNA to initiate its synthesis, named the primer-binding site (Wolf and Goff, 2009). TRIM28 induces the heterochromatinization of this sequence by recruiting H3K9 di- and trimethylation, HP1 and the NuRD histone deacetylase complex (Sripathy et al., 2006). It was recently shown that TRIM28 also binds to the 5′ sequence of endogenous LTR-retrotransposons in ES cells and early embryos, and induces their repression in conjunction with ESET-dependent H3K9 trimethylation (Matsui et al., 2010; Rowe et al., 2010). Interestingly, although reactivated IAP sequences lose H3K9 trimethylation and gain H4 acetylation, they still harbor a normal level of DNA methylation in _TRIM28_-deficient cells. This would suggest that TRIM28 either acts downstream of DNA methylation or functions in a DNA-methylation-independent manner. Another member, TRIM22, probably functions to reduce Gag protein stability and could also target TE-encoded proteins (Ozato et al., 2008). A last potential candidate for TE restriction is the zinc-finger anti-viral protein (ZAP), which does not belong to the TRIM family. ZAP promotes the degradation of viral mRNAs by interacting with the exosome, and may also prevent the accumulation of TE ribonucleoparticles in the cytoplasm (Zhu and Gao, 2008). Future studies should be directed toward understanding the importance of these various anti-retroviral proteins in suppressing endogenous TEs, and in particular in the germline in which TE-induced genetic modifications can irreversibly shape the host genome.

TE silencing in the germline

The male germline as a biological niche for TE biology

TE survival in the host organism requires their repression in somatic cells not to risk harming the host, while their obligate mode of dissemination through vertical transmission requires some level of activity and mobilization in the germline. In mammals, retrotransposons are particularly active in germ cells and in early embryos before the emergence of the germline, suggesting an adaptive strategy to transcriptional networks associated with germinal and pluripotent states. The MT family of LTR retrotransposons accounts for 13% of the transcriptome of the mature mouse oocyte, although these sequences comprise <5% of the genome (Peaston et al., 2004). ETn elements were originally identified by their specific expression during early embryogenesis (Maksakova et al., 2008). L1 transcripts and proteins are naturally found in male germ cells entering meiosis and in preimplantation embryos, while they appear to be completely repressed in differentiated somatic tissues (Branciforte and Martin, 1994). Moreover, L1 transcripts may be competent for integration in the early mouse embryo after being carried over from the gametes through fertilization (Kano et al., 2009). It is in fact increasingly suspected that most of L1 mobilization may occur during early embryonic development in humans, as evidenced by the retrotransposition of a transgenic L1 element observed in human embryonic stem cells (Garcia-Perez et al., 2007). Somatic and germinal mosaicisms of L1 insertions observed in human pathology also support this notion (van den Hurk et al., 2007).

The propensity of the germline and early embryos to express TEs is not only linked to the availability of key transcription factors, but also to a relaxation of epigenetic control in these cells. Indeed, genome-wide loss of DNA methylation accompanies the acquisition of pluripotent states in primordial germ cells and preimplantation embryos, which opens a window of opportunity for TEs to escape from host restraint (Rougier et al., 1998; Hajkova et al., 2002). The struggle between TEs and their host is expected to be the most obvious in these natural sites, and indeed, recent studies have highlighted the defense strategies specifically developed by the germline to hold TEs back in check. However, the sensitivity to TE repression is subject to a very strong sexual dimorphism, which likely reflects the different developmental kinetics of the male and female germlines.

In males, individual inactivation of components of the germline arsenal against TEs invariably leads to sterility (Figure 1). Mutant animals do not produce any mature gametes, a condition known as azoospermia. TE reactivation is associated with a high rate of illegitimate pairing between non-homologous chromosomes at meiosis, which triggers an apoptotic checkpoint and ends spermatogenesis. TE reactivation also perturbs the self-renewal program of spermatogonial stem cells, which results in spermatogenic tubules completely devoid of any germ cells within a few weeks. This phenotype was originally described for the methylation-deficient Dnmt3L mutant males (Bourc’his and Bestor, 2004), observed again in PIWI mutants (Carmell et al., 2007; Aravin et al., 2007b) and more recently recapitulated in mutations for proteins supporting the piRNA/PIWI pathway, such as the Tudor domain-containing proteins TDRD1 and TDRD9 (Ollinger et al., 2008; Soper et al., 2008; Ma et al., 2009; Reuter et al., 2009; Shoji et al., 2009). Tudor domain-containing proteins assemble specialized RNA processing platforms in the cytoplasm of germ cells, to which they recruit PIWI proteins through their ability to bind symmetrically dimethylated arginines, a post-translational modification undergone by both MILI and MIWI2 (Aravin et al., 2009; Vagin et al., 2009; Wang et al., 2009; Shoji et al., 2009). As a whole, directed mutagenesis in mice has allowed the identification of nine proteins with a key role in safe guarding the male germline against TEs (Table 1 and Figure 1): Dnmt3L, Dnmt3A, MIWI2, MILI, Maelstrom (MAEL), TDRD1, TDRD9, GASZ and Tex19.1 (Testis expressed 19.1) (Ollinger et al., 2008; Soper et al., 2008; Ma et al., 2009). All of these proteins, except Tex19.1, have been involved in the same TE restricting pathway, initiated by PIWI-dependent TE transcript cleavage and ending with DNA methylation-induced transcriptional repression. These proteins not only protect fertility in the short term, but also prevent reduction of fitness in the long term, by limiting the accumulation of heritable TE-induced germline mutations.

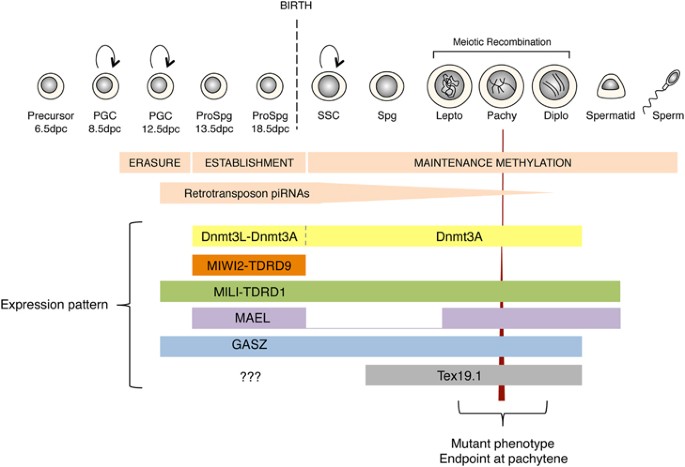

Figure 1

figure 1

Expression pattern and mutant phenotype of proteins involved in TE repression in the developing male germline in mice. The germline genome gets heavily demethylated as primordial germ cells (PGCs) colonize the genital ridges around 10.5 d.p.c. After sex determination, male PGCs become prospermatogonia (ProSpg) and get remethylated from 13.5 d.p.c. to birth, at the formation of spermatogonial stem cells (SSC). This period coincides with an accumulation of TE-derived piRNAs and a peak of expression of de novo DNA-methyltransferases Dnmt3L and Dnmt3A, PIWI proteins MILI and MIWI2 and their respective associated Tudor proteins TDRD1 and TDRD9. Other proteins with an important role in supporting piRNA biogenesis are also present in ProSpg, Maelstrom (MAEL) and GASZ. Some of these proteins are expressed at later stages of spermatogenesis. Mutations in these genes results in male sterility, with male germ cells ending their progression at the pachytene stage.

Full size image

The situation in the female germline differs greatly to that in males. Females lacking any of the components mentioned above do not significantly reactivate TEs in their germline. It is noteworthy that Mili and Miwi2 mutant females are fertile even when harboring combined mutations (Carmell et al., 2007; Watanabe et al., 2008; Shoji et al., 2009). So what controls TE expression in oocytes? As discussed earlier, the DICER-dependent siRNAs may constitute an alternative or redundant degradation system to the piRNA pathway for controlling TE expression in oocytes (Tam et al., 2008; Watanabe et al., 2008). However, Dicer deficiency barely affects TE expression levels (Murchison et al., 2007; Watanabe et al., 2008). Moreover, TEs are naturally hypomethylated and expressed in mature oocytes (Peaston et al., 2004; Lucifero et al., 2007), suggesting that these cells are apt to tolerate the presence of TE transcripts. Active cell division is an important requirement for TE transposition, and the long meiotic arrest endured by oocytes may constitute an innate barrier to the completion of the full TE cycle (Shi et al., 2007). The stringency of TE control is therefore not as primordial as for the male germline, which relies on life-long dividing cells, the spermatogonial stem cells (Aravin and Bourc’his, 2008). This hypothesis is strongly supported by the absence of such a sexual dimorphism in Drosophila, a species in which both male and female germlines rely on a pool of dividing stem cells. In this case, the two sexes are equally susceptible to TE reactivation in their germlines and share common defense mechanisms (Brennecke et al., 2007; Aravin et al., 2007a). The only known case of potential TE reactivation in mammalian oocytes is reported for female mice bearing mutations in the Lsh helicase gene, a regulator of DNA methylation (De La Fuente et al., 2006). However, this effect could be secondary to a more general perturbation of embryonic development and the effect on fertility is not known.

Developmental scenario of TE regulation in the male germline

In mammals, the germline is set aside from the rest of the embryo at around 6.5 d.p.c. in mice. After a phase of migration, the primordial germ cells colonize the genital ridges around 10.5 d.p.c. Unknown signals emanating from the future gonads trigger a genome-wide erasure of methylation patterns (Figure 1), as part of the epigenetic reprogramming leading to primordial germ cell pluripotency and resetting of genomic imprinting (Trasler, 2006). L1 elements get severely demethylated at this stage, while IAP elements conserve some residual methylation (Hajkova et al., 2002). This lack of methylation-dependent control lasts for a few days in male germ cells. Commitment to a male-specific program occurs at 12.5 d.p.c. in response to the expression of the sex-determining Sry gene. Subsequent establishment of male-specific methylation patterns starts at 13.5 d.p.c. to be fully completed at birth (20.5 d.p.c.), at the time of appearance of spermatogonial stem cells (Kato et al., 2007). This window of TE de novo methylation coincides with a quiescent period of development, in which germ cells are in G0/G1 arrest and take the name of prospermatogonia (Figure 1). Expression of Dnmt3L, Dnmt3A, the PIWI proteins MILI and MIWI2, as well as TDRD, MAEL and GASZ proteins specifically peaks during this period.

Although epigenetic relaxation of TE control may primarily be observed as suicidal for the host, TE reanimation is actually leading to their own fall in the male germline. Methylated and repressed TEs live undercover in the host genome. Their demethylation in germ cell precursors reveals their existence to the host, which can deploy an ancestral PIWI-based recognition and destruction machinery to maintain them in hold. The piRNA pathway is deeply conserved among metazoans, and is invariably involved, from invertebrates to vertebrates, in protecting genomic integrity in the germline by restricting TE transcripts (Aravin et al., 2007a). Contrary to flies and worms, which rely on the piRNA pathway but are devoid of genomic methylation, the mammalian germline combines both piRNA-induced degradation and DNA methylation to silence TEs. Their epistatic relationship explains why mutations in genes required for piRNA production, such as Mili, Miwi2, Tdrd1, Tdrd9 and Gasz, also affect the process of de novo methylation of TE elements in prospermatogonia (Carmell et al., 2007; Aravin et al., 2007b; Ma et al., 2009; Reuter et al., 2009; Shoji et al., 2009).

Cellular, biochemical and molecular analyses have evidenced the elaborate spatio-temporal control of TE expression occurring in the developing male germline (Figures 1 and 2). This mammalian-specific scenario is slightly different from the piRNA-based suppressing pathway described in Drosophila (Brennecke et al., 2007). After methylation erasure in primordial germ cells, TE retrotranscripts are potentially expressed, sensed by PIWI proteins and cleaved into piRNAs. As a result of their presence in opposite orientations in the genome, TEs can generate both sense and antisense retrotranscripts that will be respectively cleaved into primary sense and secondary antisense piRNAs. What initiates this process is not fully elucidated yet, but primary and secondary piRNAs are sorted into distinct cytoplasmic compartments. Primary sense piRNAs are preferentially loaded onto MILI proteins that are supported by TDRD1 Tudor proteins and reside in specific organelles called the ‘pi-bodies’ (Kojima et al., 2009; Reuter et al., 2009) (Figure 2). Pi-bodies were recently shown to contain another important player of fetal piRNA biogenesis, the GASZ protein whose biochemical function is unknown (Germ cell protein with Ankyrin repeats, Sterile alpha motifs and Leucine Zipper) (Ma et al., 2009). Secondary antisense piRNAs are more prone to associate with MIWI2 proteins, which interact with other specialized Tudor proteins, TDRD9, and localize to distinct compartments called ‘piP-bodies’ (Aravin et al., 2009; Shoji et al., 2009). Exchange of sense and antisense piRNAs between pi- and piP-bodies intensifies and accelerates the degradation of TE transcripts, which eventually leads to the accumulation of TE-associated piRNAs in prospermatogonia. Mammals, similarly to Drosophila, are devoid of an RNA-dependent RNA polymerase activity. This feed-forward loop provides an alternative way for boosting the production of small effector RNAs.

Figure 2

figure 2

Subcellular compartimentalization of the piRNA pathway and interaction with the DNA methylation machinery in the male germline. Sense (red line) and antisense (green line) retrotranscripts are produced from TE sequences within the nucleus. These transcripts get cleaved into sense and antisense piRNAs, respectively. Sense piRNAs associate with MILI-TDRD1 complexes within pi-bodies, in which GASZ also resides. Antisense piRNAs associate with MIWI2-TDRD9 complexes and localize to piP-bodies, in which Maelstrom (MAEL) is also found. Amplification of post-transcriptional degradation of retrotranscripts is likely to occur in these cytoplasmic compartments, through an exchange of sense and antisense piRNAs. MIWI2-TDTD9 modules and their associated antisense piRNAs can also feedback into the nucleus to promote a stable transcriptional repression through the recruitment of the Dnmt3L/Dnmt3A machinery involved in de novo DNA methylation of TEs in the germline.

Full size image

Any cellular mRNA expressed around 12.5 d.p.c. is likely to be subject to PIWI-directed cleavage. However, a robust post-transcriptional repression will be fostered only on parallel processing of homologous sense and antisense transcripts. Transcripts originating from single-copy and single-oriented genes fail to engage into the amplification cycle. Exon-derived piRNAs are only found in a sense orientation in association with MILI and they form <3% of the total piRNA population present at 16.5 d.p.c. (Aravin et al., 2008). In contrast, TE-derived sense and antisense piRNAs account for almost 50% of piRNAs. Interestingly, MILI and MIWI2 not only have strand orientation preference but also bind piRNAs of different sizes, with MIWI2-bound piRNAs being slightly longer than MILI ones (average of 28.5 versus 26 nt). Nucleotide differences also reflect specific slicing signatures between MILI and MIWI2. How sense and antisense TEs are directed toward MILI or MIWI2 is unknown, but MIWI2 loading with antisense piRNAs is strictly dependent on MILI slicing activity, while MILI loading occurs without the need of MIWI2 (Aravin et al., 2008).

Once loaded with antisense piRNAs produced by MILI-dependent cleavage, the MIWI2/TDRD9 complex can translocate from its cytoplasmic compartment into the nucleus (Aravin et al., 2009; Shoji et al., 2009) (Figure 2). MIWI2-bound antisense piRNAs will there promote de novo methylation of complementary genomic copies of TE elements. The piRNA pathway therefore converts a post-transcriptional response to TE reactivation into a mitotically stable mode of transcriptional repression (Aravin and Bourc’his, 2008; Aravin et al., 2008; Kuramochi-Miyagawa et al., 2008). Modalities of piRNA-dependent recruitment of the Dnmt3L/Dnmt3A complex are currently unknown and represent the next challenge in understanding RNA-directed DNA methylation pathways in mammals. The genome of Drosophila also encodes a PIWI protein with a nuclear localization, which suggests that chromatin modifications are the ancestral mechanism of piRNA-induced transcriptional repression (Brennecke et al., 2007). Nuclear antisense piRNAs could work in RNA:RNA hydrids, by recognizing nascent TE transcripts and promote in cis the formation of repressive chromatin states at target TE loci. A similar mechanism operated by siRNAs is involved in heterochromatin formation in fission yeast (Zofall and Grewal, 2006), and could be consolidated in mammals by recruiting the Dnmt3L/Dnmt3A methylation complex (Ooi et al., 2007; Aravin and Bourc’his, 2008). Alternatively, antisense piRNAs could also act in RNA:DNA hybrids. Invasion of double-stranded TE genomic segments with single-stranded piRNAs may generate alternative secondary structures such as DNA:RNA triplexes, which could attract directly or indirectly the DNA-methyltransferases (Bestor and Tycko, 1996).

The piRNA pathway is a major fertility protector in mammals, having a dual role in restricting TE activity through post-transcriptional degradation and DNA methylation-dependent transcriptional silencing. Last but not least, some evidence suggests that it may also affect translational control of TE-encoded proteins. MILI/TDRD1-containing pi-bodies associate with mitochondria and are gathering sites for multiple RNA processing events. These include not only piRNA-mediated degradation and nonsense-mediated decay, but also translational repression. MIWI2/TDRD9-containing piP-bodies correspond to germline analogs of processing bodies, which are enriched in translationally inactive mRNAs. One key player of germ cell piP-bodies is MAEL, an enigmatic protein that contains a HMG box and a domain homologous to DnaQ-H 3′-5′ exonuclease (Soper et al., 2008; Aravin et al., 2009). MAEL mutants fail to properly assemble MIWI2 and TDRD9 in piP-bodies and reactivate L1-encoded proteins. However, piRNA biogenesis and DNA methylation are not affected, suggesting an alternative role of MAEL on TE protein translation. This observation opens up the possibility that piRNA-based defense mechanisms may target TEs at multiple stages of their life cycle, by recruiting specialized nuclear and cytoplasmic machineries available in germ cells. By interacting with specialized proteins, piRNA-directed mechanisms can also be adapted to specific TE classes. Although Dnmt3L, MILI and MIWI2 restrict L1 and LTR- elements, TDRD1 and TDRD9 show an exclusive preference for L1 suppression (Table 1) (Reuter et al., 2009; Shoji et al., 2009). Although its mode of action is currently unknown, the Tex19.1 protein is involved in limiting the expression of LTR elements of the MMERVK10C family during spermatogenesis (Ollinger et al., 2008). Identification of new partners of the piRNA machinery will provide us with a clearer picture of these specialized sub-pathways of TE suppression. Given the evolutionary relationship between infectious retroviruses and ERVs, anti-retroviral proteins such as TRIM proteins or zinc-finger anti-viral protein are promising candidates for LTR-specific defense routes.

Conclusion

The genome-wide loss of DNA methylation that characterizes the early stages of germ cell development in mammals renders the host genome vulnerable to TE invasion. However, male germ cells are extremely well prepared to face the burst of TE expression. Their piRNA-centered counteracting strategies involve many protagonists and cellular compartments that converge toward building an adaptive and multi-layered response. Moreover, germ cells undergoing demethylation rapidly stop dividing, a process that may limit retrotransposition efficiency (Shi et al., 2007). Rather than providing a comfortable niche, loosening of epigenetic repression may be observed as a trap programmed by the germline genome to sense and repress its resident TEs. Although not fully identical in detail, this detection strategy is also used by Arabidopsis thaliana, pointing to an interesting case of convergent evolution between mammals and plants (Slotkin et al., 2009). However, plants function in a safer way, by demethylating and reactivating TEs in surrounding cells of the pollen rather than in sperm cells per se. Populations of TE-associated siRNAs are then fed to the sperm to promote RNA-directed DNA methylation and correct any DNA methylation defect before fertilization.

Pluripotent cells of the mammalian embryo also undergo a genome-wide loss of DNA methylation followed by a TE remethylation at the time of implantation (Rougier et al., 1998; Hajkova et al., 2002). The piRNA/Dnmt3L pathway is apparently not active during this period (Bourc’his and Bestor, 2004; Carmell et al., 2007; Aravin et al., 2007b). Alternative RNA-directed DNA methylation or innate immunity-related pathways may be operant in sensing TEs and inducing their repression during early embryonic development.
