In contemporary software development, Continuous Integration and Continuous Deployment (CI/CD) pipelines have arisen as key devices for smoothing out the deployment cycle and ensuring the quick conveyance of high-quality applications. This guide centers around designing a CI/CD pipeline custom-fitted explicitly for PHP applications utilizing Jenkins, an open-source automation server prestigious for its adaptability and extensibility.

CI/CD pipelines automate the means engaged with building, testing, and deploying software, offering various advantages like expanded productivity, decreased manual mistakes, and quicker time-to-advertise. Jenkins fills in as the foundation of this automation, giving a strong stage to coordinating the whole improvement lifecycle.

As PHP remains a common language for web development, it's fundamental for developers to have a complete comprehension of how to integrate CI/CD rehearses consistently into their PHP projects. By following the means framed in this guide, developers can outfit the force of Jenkins to automate dreary undertakings, implement coding norms, and speed up the delivery of PHP applications.

Understanding Of Primary Terminologies

**CI/CD Pipeline: A CI/CD pipeline is a progression of automated advances that a product goes through, from introductory code changes to deployment. "CI" represents Continuous Integration, which includes consequently building and testing code changes as they are focused on a version control repository. "CD" represents Continuous Deployment or Continuous Delivery, which automates the sending of code changes to creation or organizing conditions in the staging environments after passing tests
**Jenkins: Jenkins is an open-source automation server that works with the automation of different jobs in software development, including building, testing, and sending applications. It gives an electronic connection point to make and oversee CI/CD pipelines, incorporating version control systems like Git, build tools, and testing systems.
**PHP: PHP is a broadly utilized server-side scripting language essentially utilized for web improvement. It is known for its effortlessness, usability, and expansive local area support. PHP is frequently used to make dynamic site pages, associate with data sets, and develop web-based applications.
**Version Control System (VCS): A version control system is a product instrument that enables developers to oversee changes to source code over a long time. VCS tracks corrections, works with coordinated effort among colleagues, and gives systems to branching, merging, and rollback. Instances of VCS incorporate Git, SVN (Subversion), and Mercurial.

Create CI/CD Pipeline For PHP Application Using Jenkins: A Step-By-Step Guide

Step 1: Launch An EC2 Instance

Launch EC2 instance with Amazon Linux2 Kernel 5.10(AMI) along with port numbers SSH – 22 AND HTTP 80 and custom tcp 8080 and select storage t2.micro

Launched An Instance

Now connect with git bash by using SSH command

Connecting Remotely with SSH

Step 2: Install Jenkins And Java

Install Jenkins in your local machine to perform our further operations. Perform to run the following commands to install jenkins packages

sudo wget -O /etc/yum.repos.d/jenkins.repo \
https://pkg.jenkins.io/redhat-stable/jenkins.repo
sudo rpm --import https://pkg.jenkins.io/redhat-stable/jenkins.io-2023.key
sudo yum upgrade

Adding repo for Jenkins

Now install java because jenkins runtime is Java so need to install java without java our jenkins cannot run. Install java by using following command

sudo yum -y install java-17*

Now install jenkins by using following command

sudo yum -y install jenkins

Installing Jenkins

Now start and enable our jenkins by using following commands

sudo systemctl start Jenkins
sudo systemctl enable Jenkins
sudo systemctl status Jenkins

Starting the jenkins

Now copy Public IP and Browse it along with port 8080, Because our jenkins default port number is 8080
In below highlighted words is the administrator password

Adminstration password of Jenkins

Now unlock our jenkins page by pasting Administration Password

The following screenshot is the successful setup of jenkins server.

Jenkins server

Step 3: Create Clone Job And Build Job For Setting Up A Ci/ Cd Pipeline

Now click on New item and select Freestyle Project

Selecting pipeline project

Here gives description according to project

Description to proj

In build steps there is an option execute shell, in execute shell write an script as shown in figure and save it

Configuring the build steps

Here we are cloning from GitHub repository or follow below script of PHP Application

version: '3.3'
services:
db:
image: mysql:8.0.27
command: '--default-authentication-plugin=mysql_native_password'
volumes:
- db_data:/var/lib/mysql
restart: always
environment:
- MYSQL_ROOT_PASSWORD=somewordpress
- MYSQL_DATABASE=wordpress
- MYSQL_USER=wordpress
- MYSQL_PASSWORD=wordpress
expose:
- 3306
- 33060
wordpress:
image: wordpress:latest
ports:
- 80:80
restart: always
environment:
- WORDPRESS_DB_HOST=db
- WORDPRESS_DB_USER=wordpress
- WORDPRESS_DB_PASSWORD=wordpress
- WORDPRESS_DB_NAME=wordpress
volumes:
db_data:

Now create another job for build purpose

Creating another job for build

In this Source Code Management there is a option Build after other other project are built in this select previous job name. This is the path for the CI/CD Pipeline view.
Now click on save. Now our build job and clone job was ready.

Step 4: Setting Up CI/CD

Now install build pipeline plugin in jenkins
Manage jenkins --> Available plugins --> Search for Build pipeline --> Install plugin

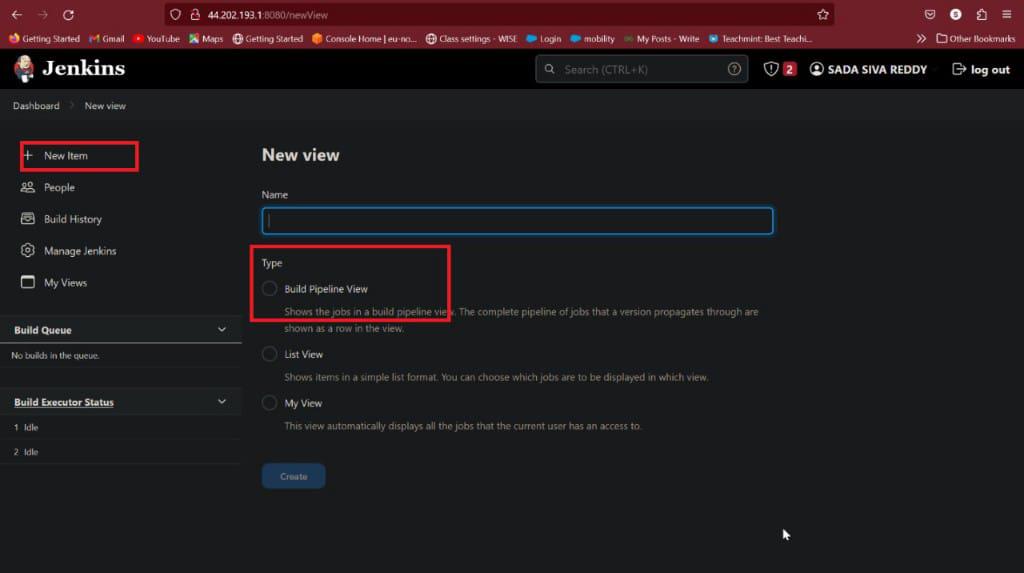

Give name to it and select build pipeline view and click on create

Selecting Item View type

Give name and description

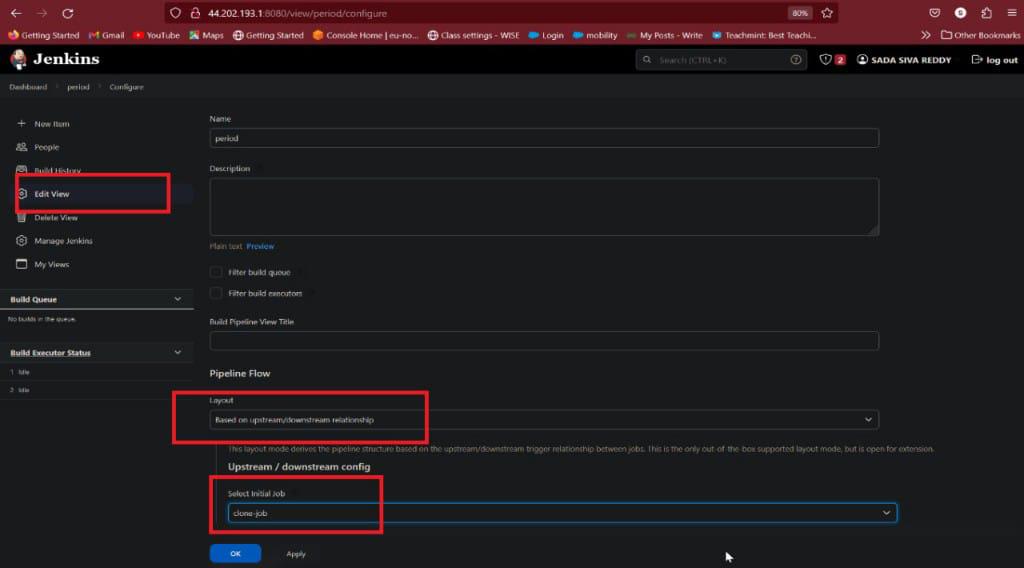

In pipeline Flow in upstream / downstream config select clone-job

Restrict triggers to most recent successful builds for this option click on YES
Always allow manual trigger on pipeline steps for this option click on YES
In display options Select number of
displays build it shows more option like 1, 2, 3, 5, …….

Configuring Build And Trigger Options

After completion of this click on OK
Now our CI/CD pipeline was ready

Successfully Pipeline setuped

This is pipeline view of our jobs

Building Pipeline

Now browse our public IP address our PHP Application was host on server

PHP Application hosted on server

Conclusion

Setting up a CI/CD pipeline for PHP applications using Jenkins enables developers to streamline their development work processes, further develop code quality, and speed up the conveyance of software. Via automating tasks like building, testing, and deployment, groups can accomplish more efficiency reliability, dependability, and deftness in their software development processes.

Through this guide, we've investigated the key ideas of CI/CD pipelines, Jenkins, and PHP development, giving step-by-step instructions to configuring a hearty pipeline custom fitted to PHP projects. From establishment and arrangement to testing and deployment, developers have figured out how to use Jenkins to automate repetitive tasks and implement best practices in their development lifecycle.

By taking on CI/CD practices with Jenkins, organizations can understand various advantages, including more limited release cycles, decreased manual errors, and expanded coordinated effort among members. Moreover, the capacity to continuously integrate and deploy code changes ensures that software stays up-to-date and receptive to evolving requirements.
